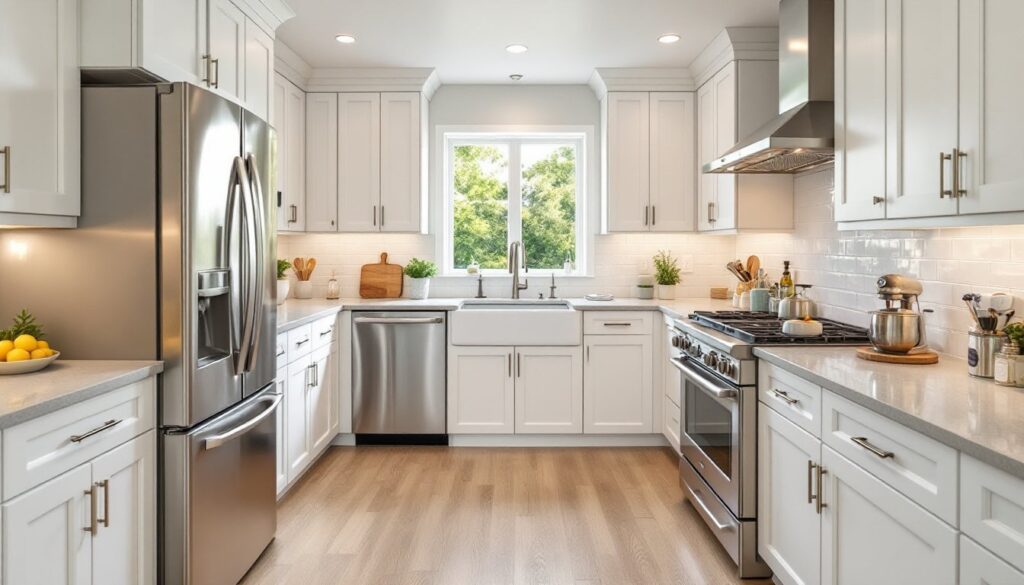

A U-shaped kitchen layout wraps three walls or runs of cabinetry around the cook in a horseshoe configuration. It’s one of the most efficient kitchen designs for workflow, offering dedicated prep, cooking, and cleanup zones without through-traffic cutting across your workspace. Whether planning a full renovation or tweaking an existing layout, understanding the dimensions, clearances, and design variations helps homeowners maximize storage and counter space without sacrificing mobility. This guide breaks down what makes a U-shaped kitchen work, where it excels, and how to avoid common layout mistakes that can turn an efficient design into a cramped corner.
Key Takeaways
- A U-shaped kitchen layout wraps cabinetry around three walls, creating a defined work zone with no through-traffic and improved workflow efficiency between sink, stove, and refrigerator.
- Proper dimensions for a U-shaped kitchen require a minimum 8-foot width and 10-foot depth, with 42 to 48 inches of aisle clearance between opposing cabinet runs to ensure functionality and safety.
- Counter space in a U-shaped design delivers 12 to 18 linear feet across three runs, providing ample room for food preparation, appliances, and storage that rivals larger L-shaped layouts.
- Corner cabinets should incorporate pull-out organizers, lazy Susans, or swing-out trays to reclaim the 30 to 50 percent of volume typically wasted in standard corner configurations.
- Budget $25,000 to $60,000 for a mid-range U-shaped kitchen renovation, allowing 8 to 12 weeks for completion with sequenced demolition, installation, and material lead times.
- Optimize the work triangle by positioning the refrigerator at one leg’s end, sink on the base, and range on the opposite leg, maintaining 4 to 9-foot distances between each element.
What Is a U Shaped Kitchen Layout?
A u shaped kitchen layout consists of cabinetry, appliances, and countertops arranged along three adjacent walls, forming a U. The open end typically faces a dining area, living space, or hallway. Unlike galley or L-shaped kitchens, this configuration creates a defined work zone with three continuous counter runs.
The layout naturally divides tasks: one leg for refrigeration and prep, the base for the sink or range, and the third leg for additional counter space or appliances. There’s no through-traffic, once you step into the U, everything is within a pivot and a step or two.
Variations include the u shaped kitchen with island, where a fourth element sits in the center for additional prep space or seating, and the open concept small u shaped kitchen, which removes upper cabinets on one leg to maintain sightlines into adjacent rooms. Both adaptations maintain the core three-sided work envelope while addressing specific needs for space or sociability.
Key Advantages of U Shaped Kitchen Designs
Workflow efficiency ranks highest. The cook moves between sink, stove, and refrigerator in a tight triangle without backtracking or navigating around foot traffic. Tasks flow logically from storage to prep to cooking to cleanup.
Counter space multiplies with three runs of cabinetry. A typical U-shaped design delivers 12 to 18 linear feet of counter, depending on room dimensions, enough to spread out mixing bowls, cutting boards, and small appliances without crowding. That’s a notable advantage over single-wall or galley layouts.
Storage capacity follows the same logic. Base cabinets, wall cabinets, and corner solutions like lazy Susans or magic corners give homeowners ample room for cookware, pantry staples, and serving pieces. A small u shaped kitchen can rival the storage of a much larger L-shaped layout by using all three walls effectively.
For kitchens that open into a dining or family room, many designers opt for an open concept small u shaped kitchen approach, swapping upper cabinets on the entry-facing leg for open shelving or a low peninsula. This preserves the work triangle while keeping sightlines clear.
Safety improves, too. With no through-traffic, kids and pets stay out of the cook’s path. Hot pans move from stove to counter without crossing a walkway.
Essential Space Requirements and Dimensions
A functional u shape kitchen layout requires a minimum room width of 8 feet and a depth of 10 feet. Narrower spaces force the cook to turn sideways between opposing base cabinets: deeper rooms waste steps.
Aisle clearance between opposing cabinet runs should measure 42 to 48 inches. The National Kitchen & Bath Association (NKBA) recommends 48 inches for single-cook households and wider if two people regularly work simultaneously. Less than 42 inches creates bottlenecks when cabinet doors or appliance doors swing open.
Base cabinets run 24 inches deep (standard), so a 10-foot-deep room allocates 24 inches per side plus 48 inches of clearance, leaving minimal margin. If the room measures 12 feet deep, homeowners gain breathing room or space for a small u shaped kitchen with island, a compact 24-by-36-inch island fits in the center without obstructing flow.
Corner cabinets consume 33 to 36 inches per leg where the two runs meet. Standard blind-corner or L-shaped corner cabinets require careful planning: pull-out organizers or swing-out trays reclaim otherwise dead space. Measure diagonally to confirm appliance doors won’t collide with adjacent cabinet hardware.
Many kitchen design resources emphasize that undersized U-shaped layouts feel cramped, while oversized ones force the cook to walk too far between zones. Aim for a 4- to 9-foot span between the sink and range for optimal efficiency.
Optimal Work Triangle Placement
The work triangle, the path connecting sink, stove, and refrigerator, should total 12 to 26 feet in perimeter, with each leg measuring 4 to 9 feet. In a U-shaped kitchen, this triangle typically fits neatly: refrigerator on one leg, sink on the base, range on the opposite leg.
Avoid placing the sink or range in a corner. Corner placement creates awkward angles for plumbing or ventilation and limits usable counter space on either side. Instead, center the sink or range on the base run with at least 15 inches of counter on one side and 12 inches on the other for landing space.
If incorporating a u shaped kitchen island, position it outside the triangle to avoid obstructing the primary workflow. Use the island for secondary tasks, coffee station, baking zone, or casual seating, rather than placing the cooktop or main sink there.
Design Considerations and Layout Variations
Best u shaped kitchen layout choices depend on room proportions and household needs. For smaller footprints (under 120 square feet), a classic three-wall design maximizes storage without adding an island. For mid-sized rooms (120 to 200 square feet), a u shaped kitchen layout with island balances work zones with casual dining or additional prep space.
Cabinet height varies by ceiling clearance. Standard wall cabinets run 30 or 36 inches tall: 42-inch cabinets suit rooms with 9-foot ceilings and provide extra storage. Leave at least 18 inches between countertop and wall cabinet bottom for adequate task lighting and elbow room.
Appliance placement affects daily use. Refrigerators belong on the end of one leg, never in the middle, to avoid breaking up counter runs. Dishwashers sit within 36 inches of the sink for easy loading and plumbing access. Wall ovens and microwaves can nestle into tall cabinet runs on one leg, freeing the base for the range or cooktop.
Corner solutions matter. Diagonal corner cabinets with lazy Susans suit dry goods: pull-out trays work better for pots and pans. If budget allows, magic-corner systems with swing-out shelves reclaim nearly all corner volume, though they add $400 to $800 per corner compared to static shelves.
For modern u shaped kitchen design inspiration, many homeowners remove upper cabinets on one leg to create an open feel or add glass-front doors to visually lighten the space. This approach pairs well with open-concept floor plans where the kitchen faces a family room.
Lighting layers include task lighting under wall cabinets (LED strip or puck lights), ambient recessed cans on a 4-foot grid, and pendant lights over an island or peninsula. Avoid a single central ceiling fixture, it casts shadows across work surfaces.
Common Challenges and How to Overcome Them
Tight clearances top the list. In a small u shaped kitchen, 42-inch aisles leave little margin when cabinet or appliance doors open. Specify cabinet doors that swing 90 degrees instead of 110 degrees, or install pocket doors on corner cabinets to reduce swing radius. Drawer-style dishwashers and refrigerators with French doors also minimize intrusion into the aisle.
Wasted corner space frustrates many homeowners. Standard corner cabinets forfeit 30 to 50 percent of their volume to inaccessible depth. Budget for pull-out organizers, lazy Susans, or LeMans-style swing trays during the cabinet quote phase, retrofitting them later costs more in labor.
Poor ventilation occurs when ranges sit too far from exterior walls. Ducted range hoods require a path to the outside: if the range lands on an interior wall, plan ductwork through the attic or roof during framing. Recirculating hoods work in a pinch but remove only grease, not heat or moisture. Check local code, many jurisdictions now require ducted hoods for gas ranges over 40,000 BTU.
Inadequate lighting leaves corners dim. Add under-cabinet LED strips on all three legs, not just the sink wall. For deep corners, battery-powered motion-sensor puck lights keep supplies visible without running additional wiring.
Closed-off feel can make U-shaped kitchens seem boxy, especially in homes built before open floor plans became standard. Removing upper cabinets on one leg, replacing solid doors with glass fronts, or extending the countertop as a low peninsula into the dining area opens sightlines. Lighter cabinet finishes, white, light gray, natural wood, also reduce visual weight.
If expanding into adjacent space, verify walls aren’t load-bearing before demolition. Load-bearing walls require engineered headers or beams (typically a doubled or tripled 2×10 or LVL, depending on span and load). Pull permits for structural changes: most jurisdictions classify removing or altering load-bearing elements as structural work requiring inspections.
Planning Your U Shaped Kitchen Renovation
Start with accurate measurements. Map existing walls, noting stud locations (typically 16 inches on center), electrical outlets, plumbing stubs, and gas lines. Measure diagonally corner to corner to check for square, older homes often have out-of-square walls that complicate cabinet installation.
Establish a realistic budget. As of early 2026, a mid-range U-shaped kitchen remodel runs $25,000 to $60,000, including cabinets, countertops, appliances, flooring, and labor. Regional labor rates, material grades (stock vs. semi-custom cabinets, laminate vs. quartz counters), and structural work (moving walls, upgrading electrical panels) all shift costs. High-end renovations with custom cabinetry, professional-grade appliances, and stone countertops can exceed $100,000.
Hire licensed professionals for plumbing, electrical, and gas work unless you hold the appropriate trade licenses. Most jurisdictions require permits for these trades, and inspections catch code violations that could affect resale or insurance coverage. Structural changes, removing walls, adding beams, also require permits and engineered plans.
Material lead times vary. Stock cabinets ship in one to two weeks: semi-custom takes four to eight weeks: full custom can stretch to 12 weeks or more. Quartz and granite countertops require templating after cabinet installation, adding another one to three weeks. For kitchen remodel planning, sequence demolition, rough-in, drywall, cabinet installation, countertop templating, and final trim across a realistic eight- to twelve-week timeline for a full gut renovation.
DIY-friendly tasks include demolition (with proper dust containment and disposal), painting, installing cabinet hardware, and basic tile backsplash work. Leave gas line connections, 240V appliance circuits, and structural framing to licensed trades.
Order samples before committing. Cabinet door styles, countertop slabs, and flooring all look different under home lighting than in a showroom. Live with samples for a few days, viewing them in morning and evening light.
Finally, plan for temporary kitchen setup. A functional sink, microwave, and cooktop in a garage or basement keeps meals manageable during the weeks cabinets and appliances are out of commission. Stock up on paper plates and simple meals, renovation fatigue is real.
